Xiaomi Precision Induction Cooker Teardown

Just in case this is useful to someone, here are some photos of the inside of a Xiaomi Precision Induction Cooker.

The device uses an ESP8266 WiFi Microcontroller as it’s main controller, which is seemingly attached to a power supply board and thermal sensors via I²C.

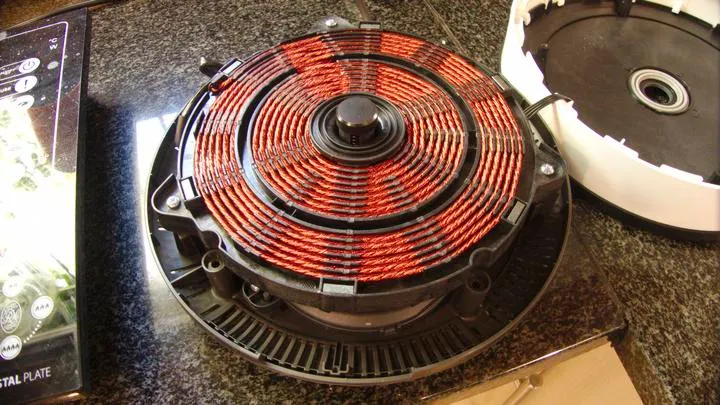

  • Xiaomi Precision Induction Cooker Top Removed

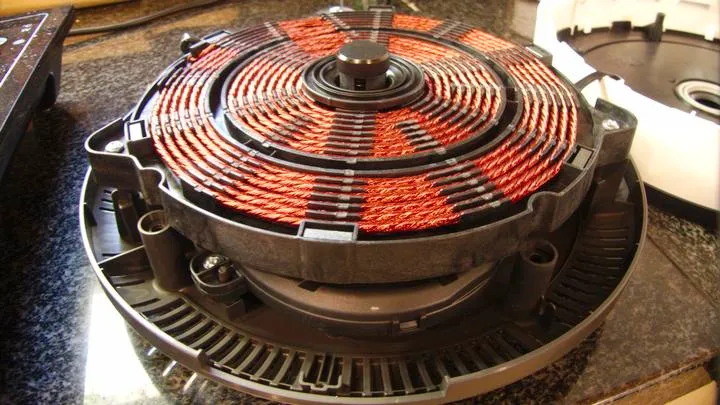

  • Xiaomi Precision Induction Cooker Top Removed (side view)

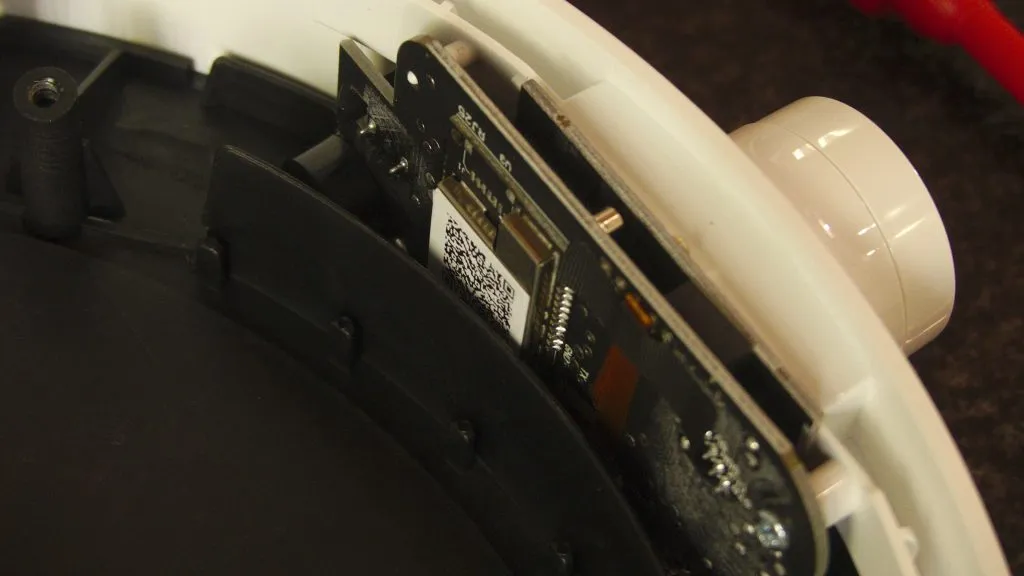

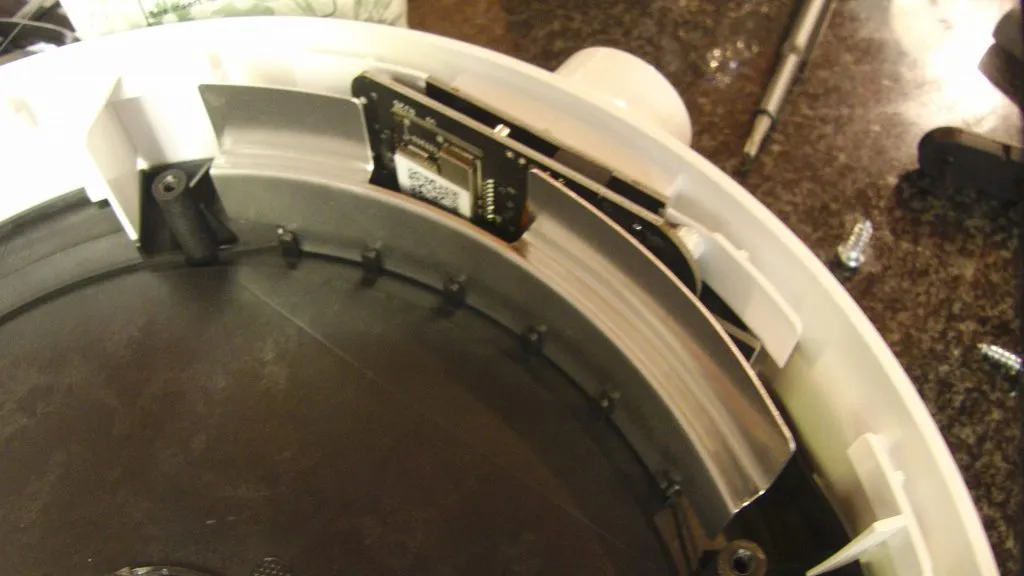

  • Controller in lid of the Xiaomi Precision Induction Cooker

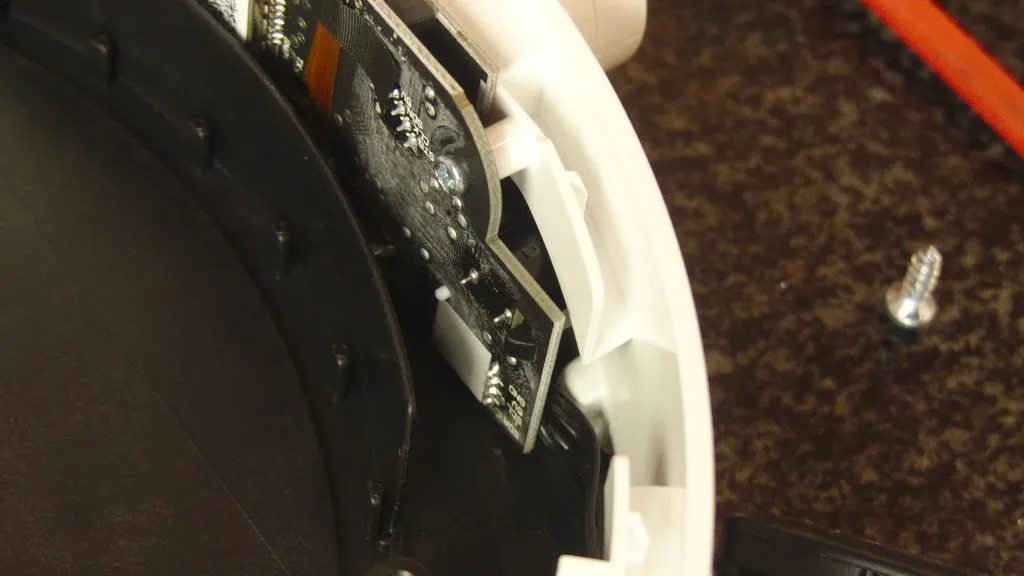

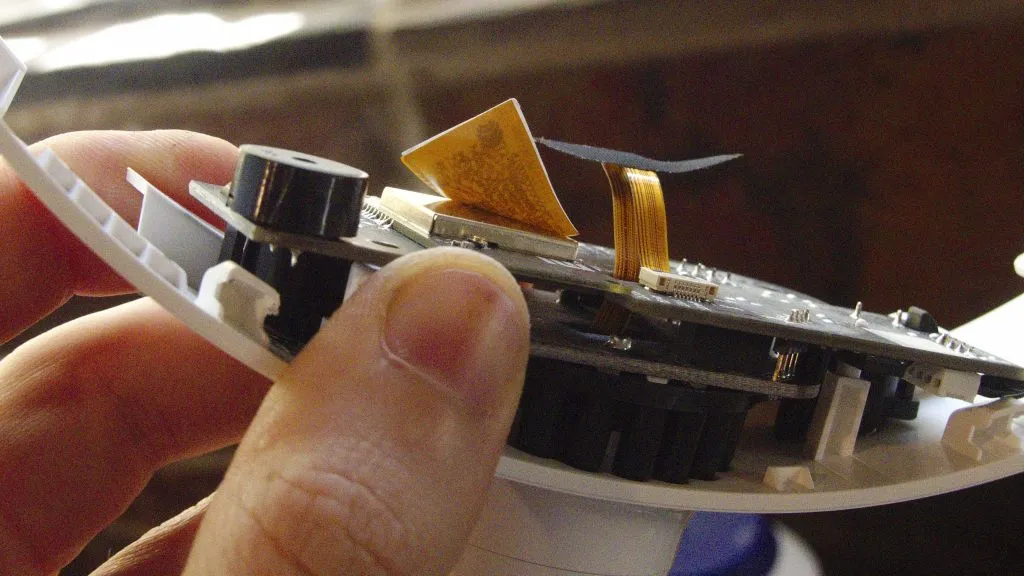

  • Rear of main MCU board showing I2C connections.

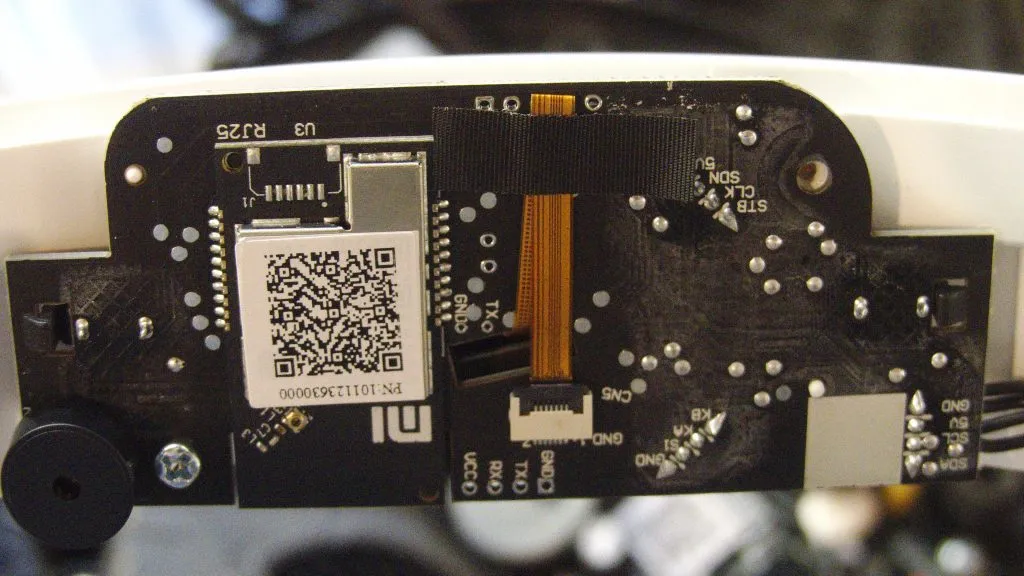

  • Close up of the main controller in lid of the Xiaomi Precision Induction Cooker showing SoC shield and manufacturer QR code.

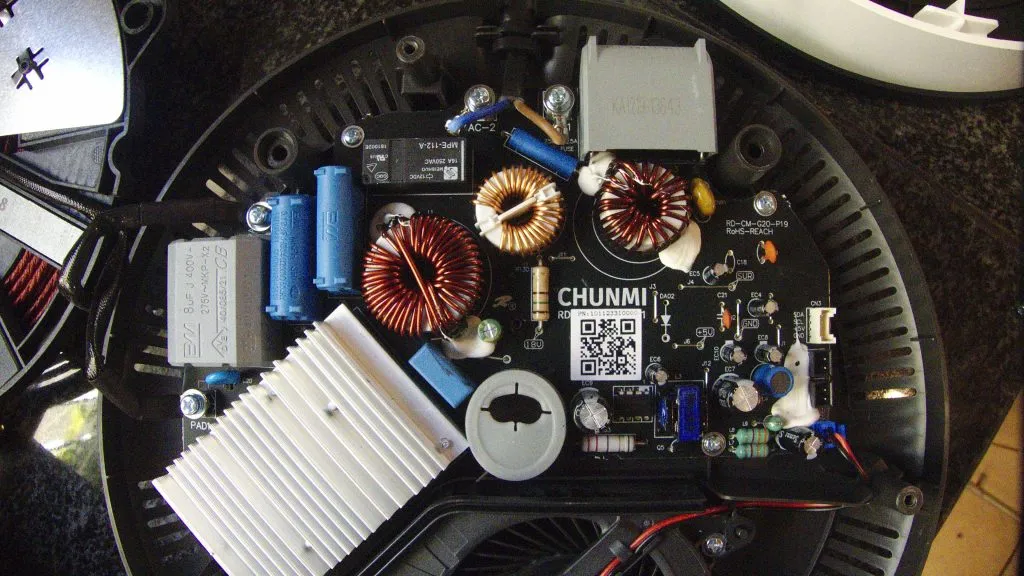

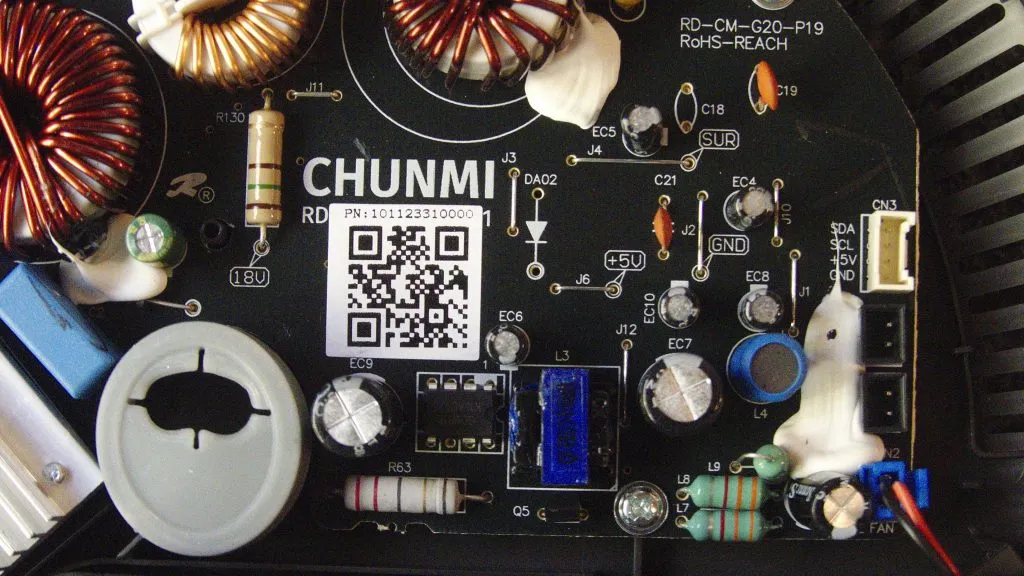

  • Power supply board.

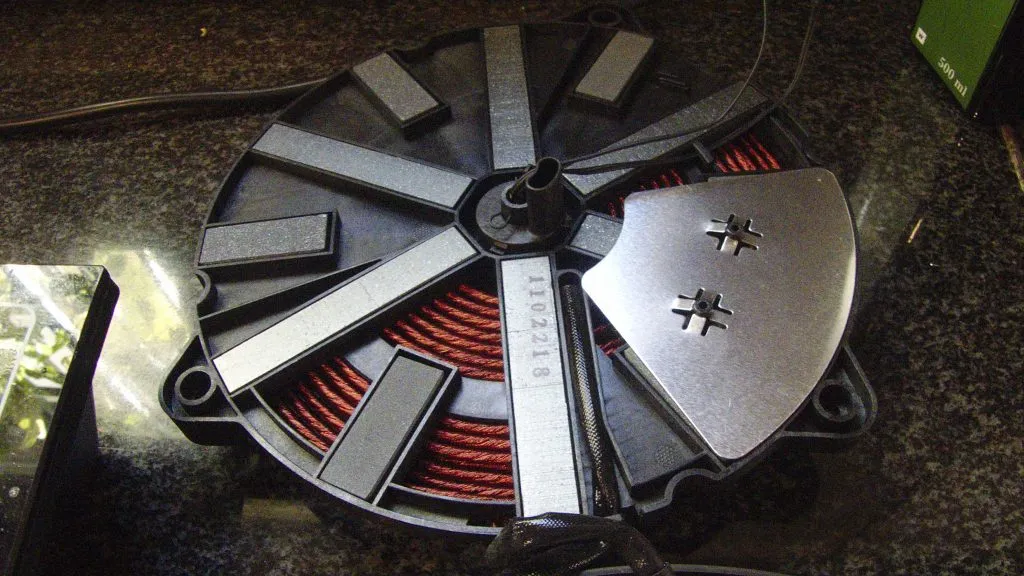

  • Underside of induction coil platform.

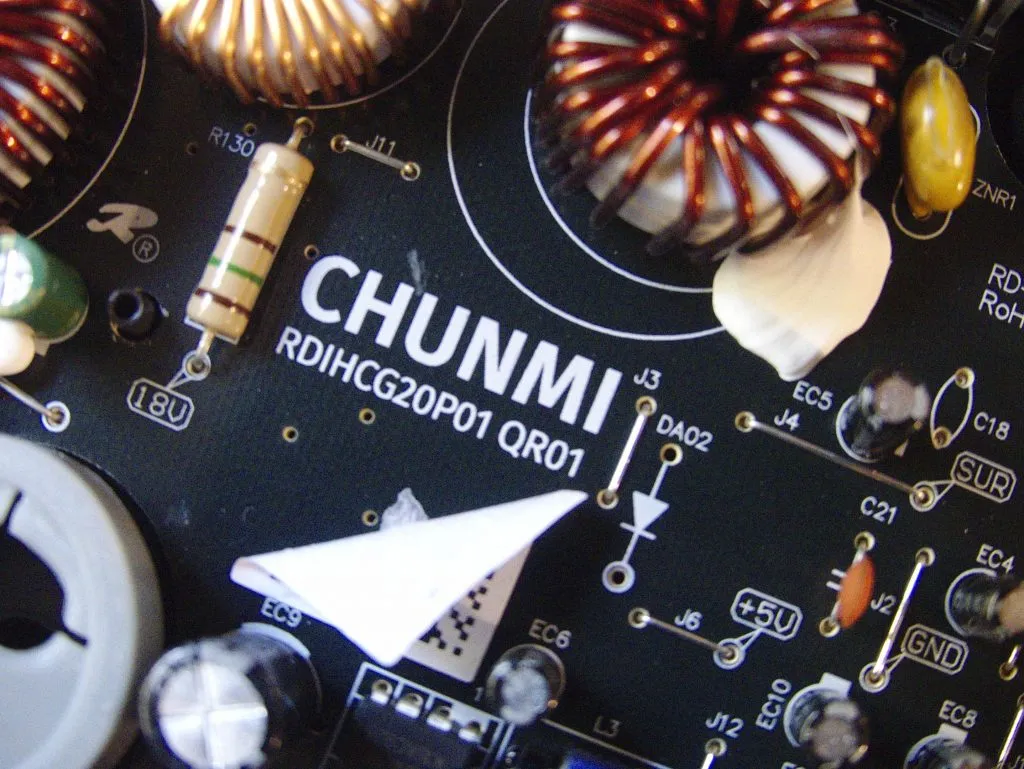

  • Power supply board detail.

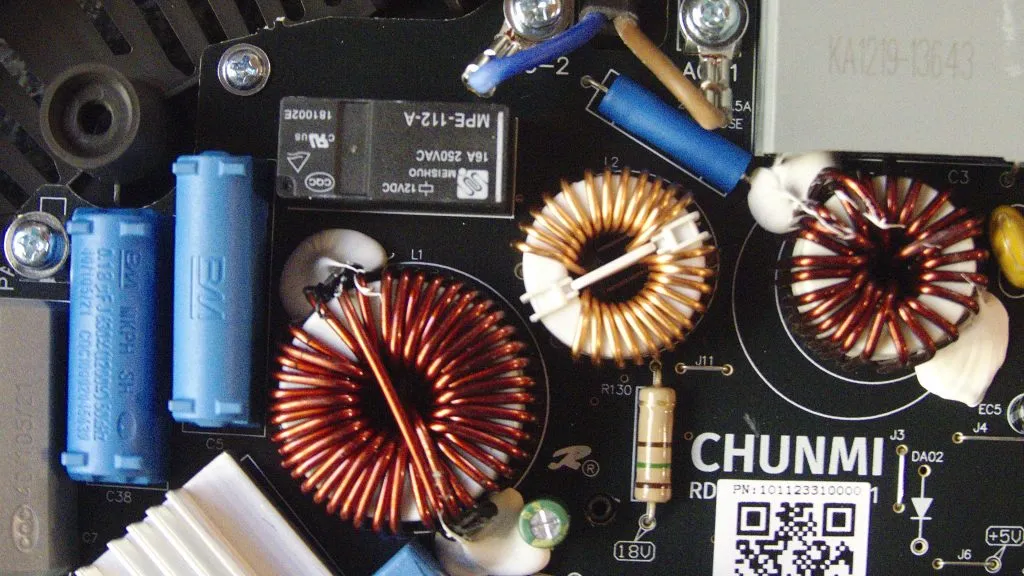

  • Power supply board detail.

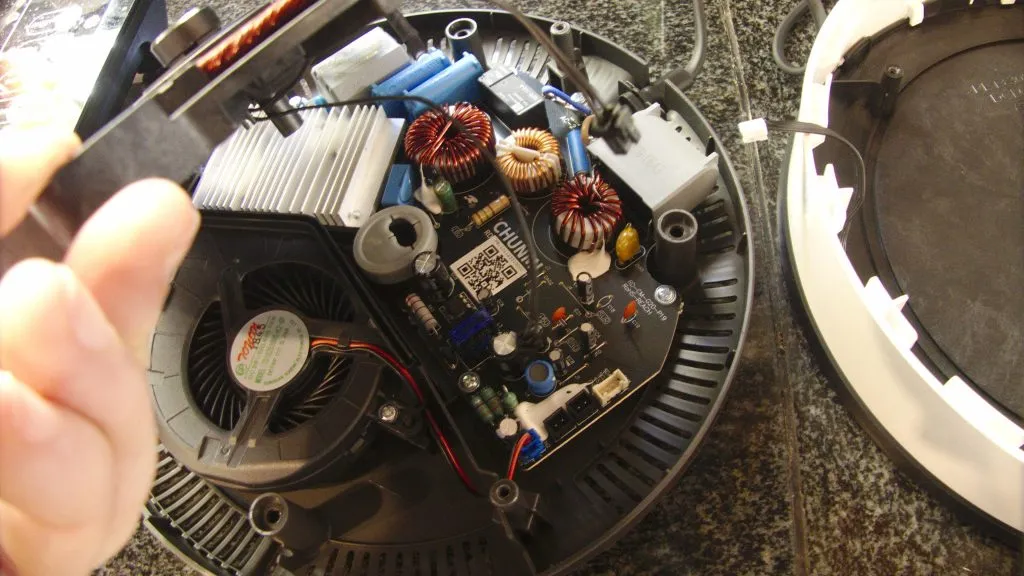

  • Power supply board.

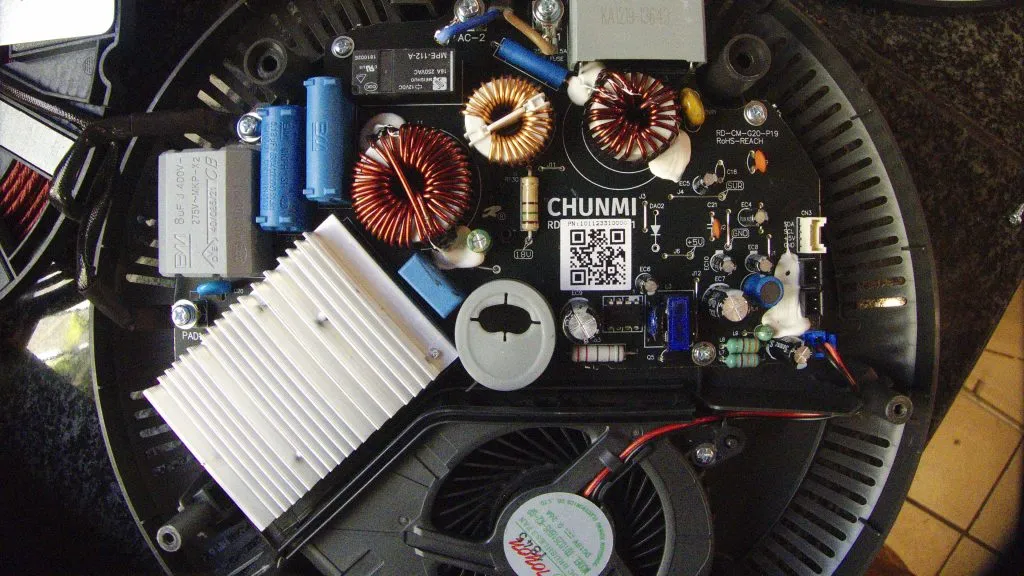

  • Power supply board.

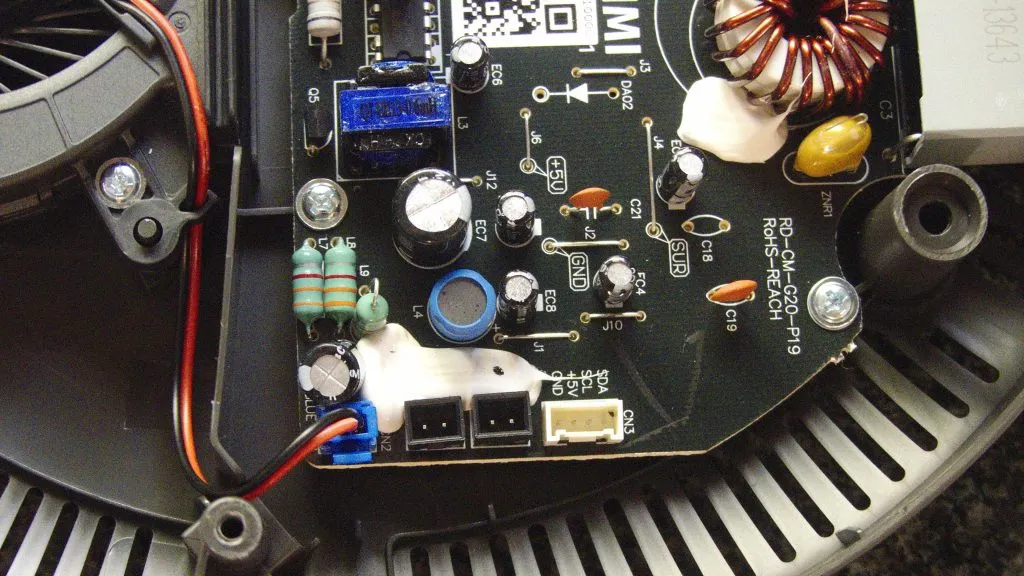

  • Power supply board with focus on I2C headers.

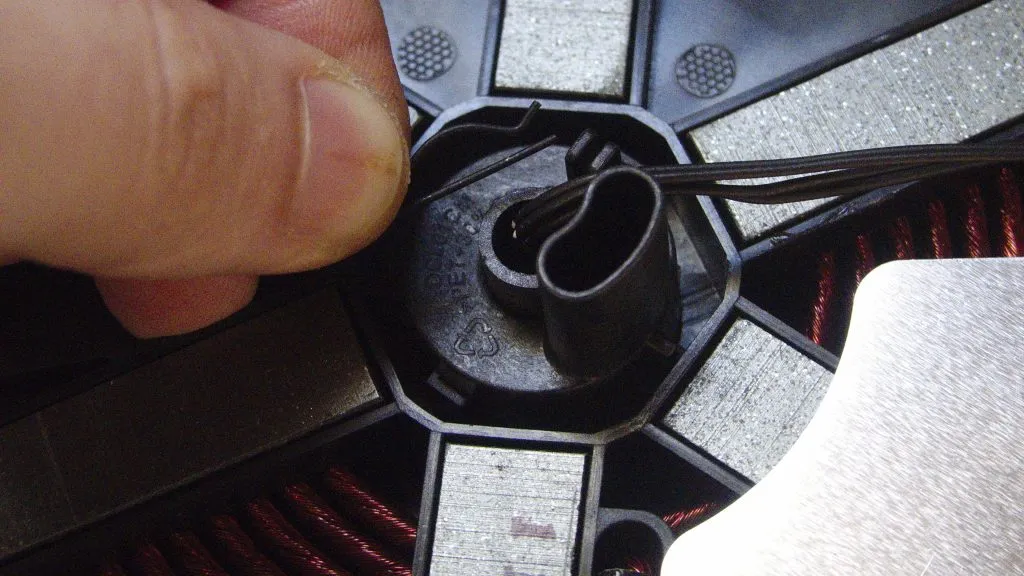

  • Underside of coil platform with focus on the thermal probe securing split pin and drainage hole.

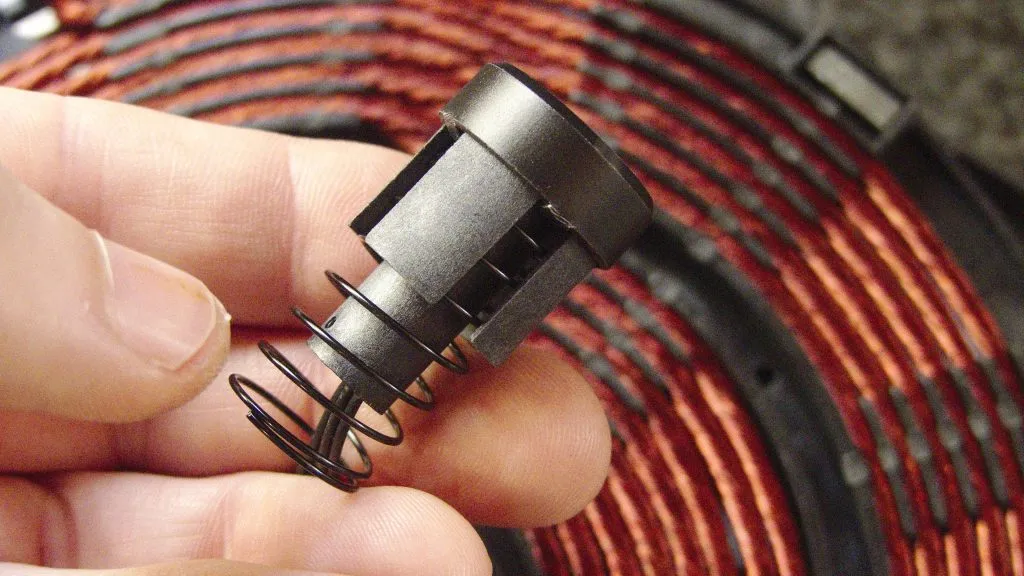

  • Xiaomi Precision Induction Cooker Thermal Probe

  • Main MCU showing dev board.

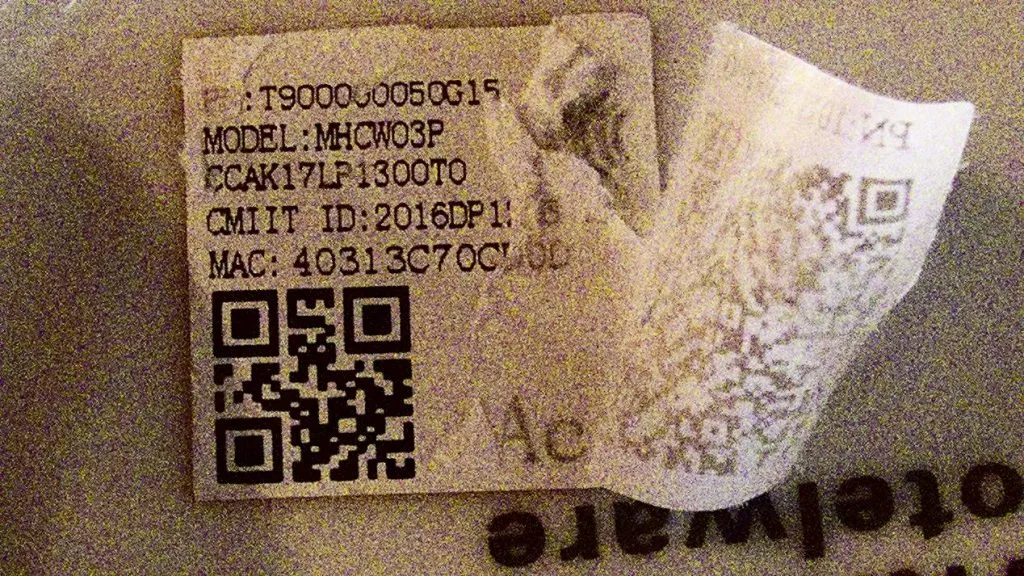

  • Originally hidden MCU data - of interest is MHCW03P
